Ultra Wide Bandwidth Transceiver for LTE Research
56Mhz rx Bandwidth is a game changer

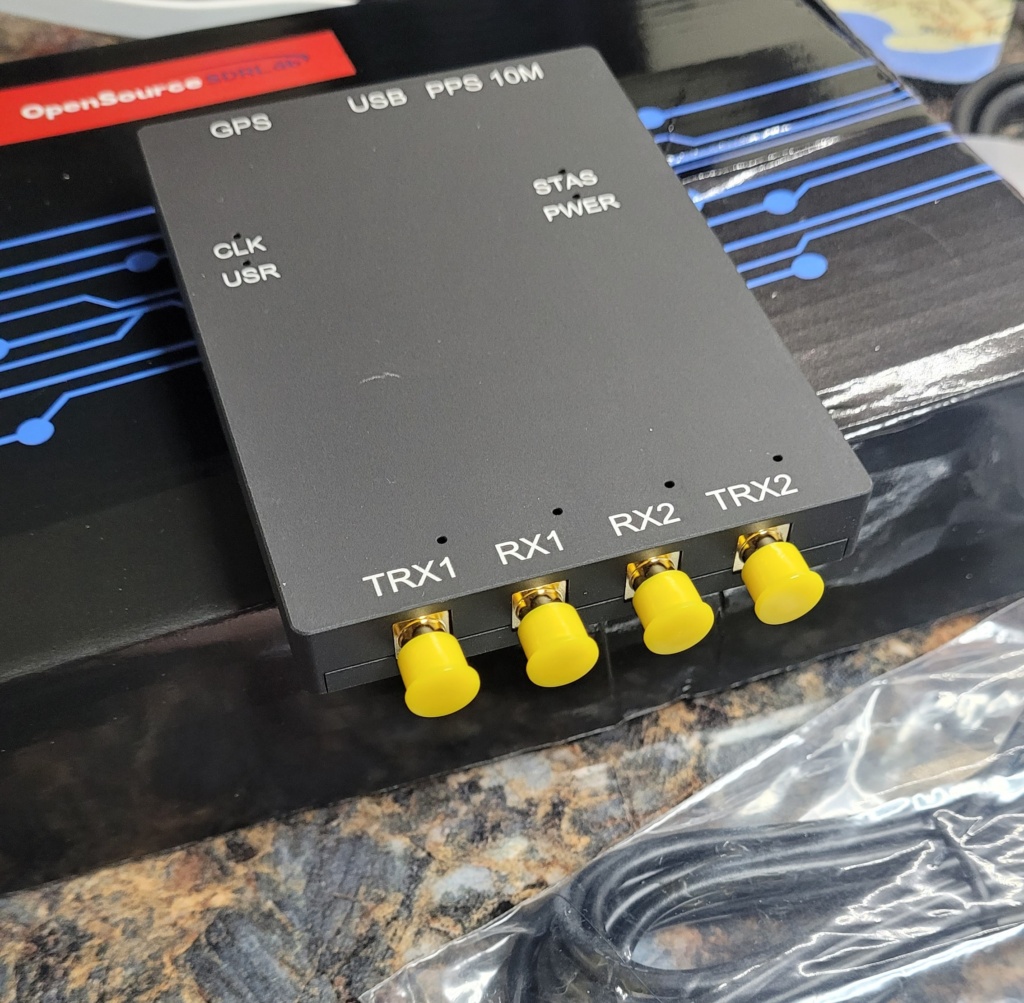

The USRP B210 is a 2 channel software defined radio. This entry-level USRP SDR connects to the host computer via USB3 and supports fundamental wireless research, and prototyping. RF capabilities of the device include a frequency range of 70 MHz to 6 GHz and a RF bandwidth of 56 Mhz.
Coming from a background in Amateur Radio, where receive bandwidths are typically 3khz wide, seeing a received signal 20Mhz wide is somewhat mind blowing.
HackRF vs. usrp b210 Transceiver

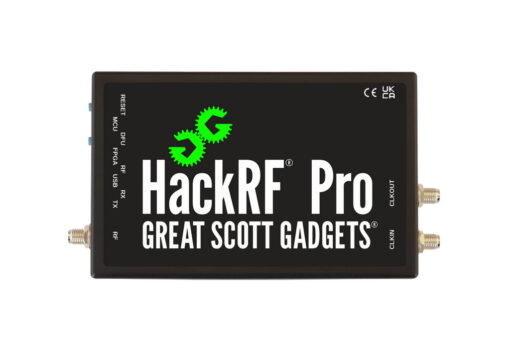

My first purchase was the HackRF Pro, and I quickly realized it would not fully support LTE research, as its bandwidth capabilities were not sufficient. I was unable to capture and sync any LTE signals using the Falcon Analyzer.

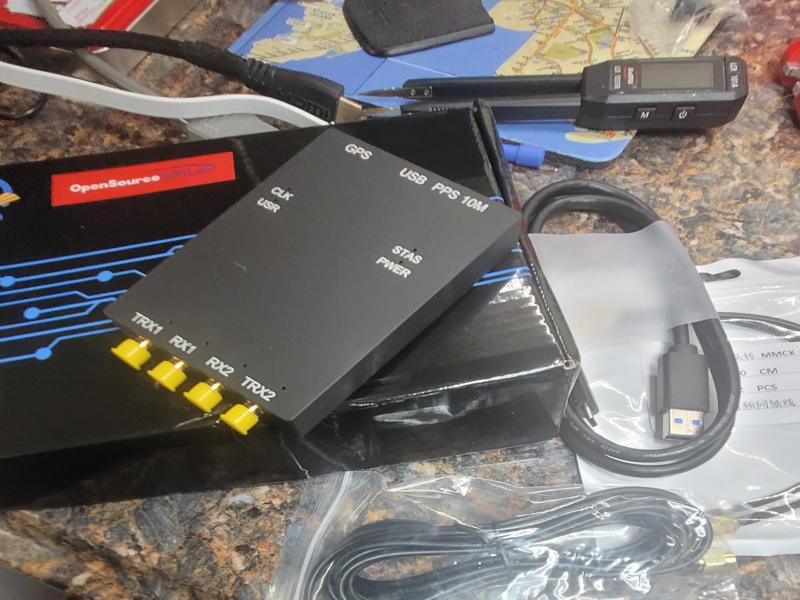

I then decided to take the plunge and PURCHASE the USRP B210. While it’s not an Ettus manufactured radio, it has all the Ettus compatibility, and utilizes a more up to date chipset in the AD9361BBCZ+XC7K325T combination.
Advanced FPGA integration Equipped with the XC7K325T FPGA, this board enables real-time signal processing and flexible reconfigurable designs for complex SDR projects.
High-performance SDR development board The USRP B210 AD9361 supports up to 56MHz bandwidth, ideal for advanced software-defined radio applications in education and research environments.
My initial attempts to establish a synchronized LTE connection were unsuccessful. I had located and tuned to a valid LTE center frequency, but Falcon was still unable to lock into the timing bits, and it appeared the software was ‘overwhelmed’ by all the data trying to read it through a USB2 connection and experiencing a huge number of dropped data blocks.
